A fully integrated storage solution

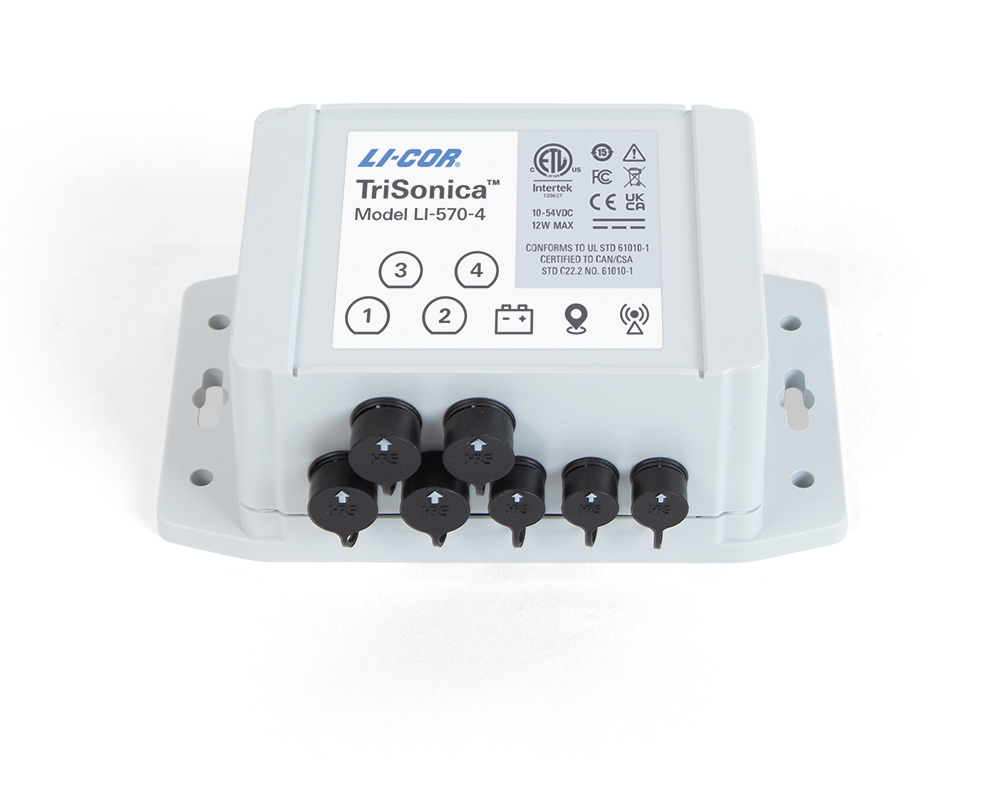

The LI-570 TriSonica® Data Logger connects up to four TriSonica® sensors* or other serial ASCII-based instruments, a GPS receiver, and a radio transceiver.
It is small, lightweight, has low power requirements, and works from a simple AC power adapter, a UAS/UAV battery, or a solar/wind charged battery system. It can power all attached devices. It stores data locally on a MicroSD card or can transmit the data over a serial data link.
The LI-570 can be integrated using standardized connectors to support a radio transceiver, a GPS receiver, and batteries (UN38.3 certified). The IP-67 enclosure makes it suitable for remote deployments in challenging conditions.
* Connect up to four LI-550P TriSonica® Minis, up to three LI-560 TriSonica® Spheres, or a combination with up to two of each.
LI-570 Specifications
- Power Supply Voltage: 10 - 54 VDC
- Power: 400 mW when no sensor is connected; up to 12 W maximum
- Environment: Suitable for outdoor use in wet locations
- Altitude: Up to 5000 meters
- Temperature: -20 to 50 °C
- Relative Humidity: 0 to 100%.
- Transient Overvoltage: Category II
- Temporary Overvoltage: 60 V
- Pollution Tolerance: Level 3 (enclosure must be intact and in good condition)
- Four Serial Ports for TriSonica® Anemometers:
- UART-TTL or EIA232 voltage level
- Configurable baud rate and parity
- 12V output to power TriSonica® sensors
- Trigger output to synchronize multiple pipe-mount type sensors
- Instrument Ports:
- LI-550P and LI-560 trigger output
- RS-232
- GPS Port and External Radio Port:
- NMEA0183 GPS
- TTL-UART
- I2C
- JST 6-pin GH connector
- GPS can be timing standard
- MicroSD Card Storage:
- Formats: FAT16, FAT32, exFAT
- Maximum card capacity: >32 GB
- Data Sampling:
- Maximum scan rate: 100 Hz
- Adjustable sampling rates
- User-definable response for missing data
- Real-time clock with time tagging option
- External connections ESD protected
- Weight: 450 g (16 oz.)
Specifications subject to change without notice.
